Description:

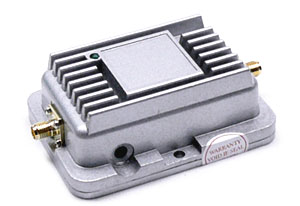

ARG-2301A is an indoor solution 1W bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance.
The unit is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 11 mbps IEEE802.11b devices. The amplifiers increase range by providing transmit gain as well as low-noise receive gain. This receive gain increases the receive sensitivity of wireless LAN Access Point. Full output power of 500mW is achieved with only 5 mW input into the Booster.
Characteristics:
Cast Aluminium Construction
Power and transmit LEDs
10 dB receive signal gain
Lightning Protection
High Gain, High Value, High Performance
Increase range of low powered radio modems
Specifications:
Operation Range 2400-2500 MHz
Operationg Mode Bi-directional, half-duplex, Auto-Switching via carrier sensing
Transmit Gain 12dB (Adjustable)
Output Power 1W/26dBm nominal for 802.11g/54Mbps
Frequency Response *+- 1dB over operation range
Transmit Input Power Max. 100mW, Min 6mW
Receiver Gain 14dB typical
Receive Noise Figure 3.5dB typical
Connector SMA receptacle (50 ohm)
Power 6V DV Max. current <1A, 90-264V for AC adapter
Operationg Temp. *-20 to + 70C
Operating Humidity Up to 95% relative humidity
Distance* Up to 1000M (5000ft) depends on environment
Dimesnion (cm) 7.8 cm (L) x 5.6 cm (W) x 2.9 cm (H)
Material Die Casting Aluminum
Safety Certification FCC/CE/VCCI

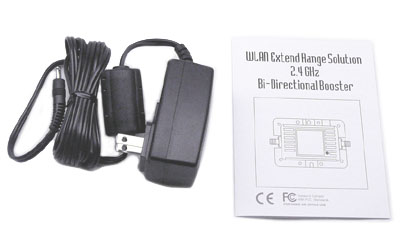

Package Content:
1W Booster/Amplifier
AC adapter (110~~240V input)

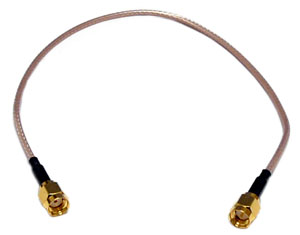

RG316 Cable (30cm)
Manual
Antenna Not included (please use the antenna from the router)
This product was added to our catalog on Wednesday 24 October, 2007.
