Outdoor 1W/27dBm 802.11b/g Auto-Gain Booster/Amplifier
Signal up to 2500M (8250ft)*
Made in Taiwan=Quality Assurance
Description:

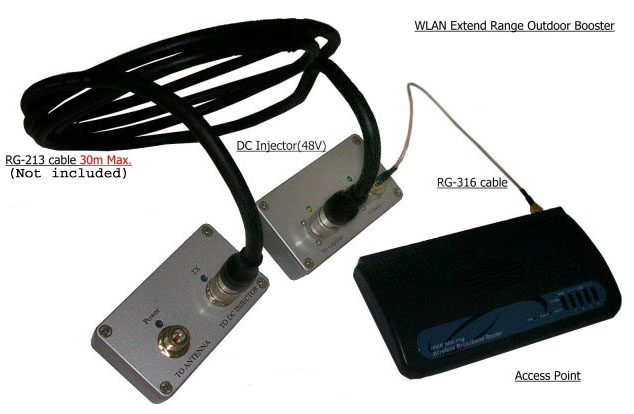

WZ-2200-1W is an outdoor solution 1W bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance.
The unit is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g devices.
The amplifiers increase range by providing transmit gain as well as low-noise receive gain. This receive gain increases the receive sensitivity of wireless LAN Access Point. Full output power of 1W is achieved with only 5 mW input into the Booster.
Character:
-
Cast Aluminum Construction
-
Power and transmit LEDs
-
15 dB receive signal gain
-
Lightning Protection
-
High Gain, High Value, High Performance
-
Increase range of low powered radio modems
Specifications:
| Operation Range | 2400-2500 MHz |
| Operating Mode | Bi-directional, half-duplex, Auto-Switching via carrier sensing |
| Transmit Gain | Auto Gain Control |
| Output Power | 1W/27dBm nominal for 802.11g/54Mbps |
| Frequency Response | *+- 1dB over operation range |
| Transmit Input Power | Max. 100mW, Min 6mW |
| Receiver Gain | 15dB typical |
| Receive Noise Figure | 3.5dB typical |
| Connector | N-type female (50 ohm) |
| Power | Direct DC ground at antenna connector |
| Distance* | Up to 2500M (8250ft) depends on environment |
| Dimension (cm) | Amplifier: 11.5cm(L) x 6.5cm(W) x 4.8cm(H)
DC Injector: 7.8cm(L) x 5.6cm(W) x 2.9cm(H) |
| Material | Die Casting Aluminum |
| Safety Certification | FCC/CE/VCCI |

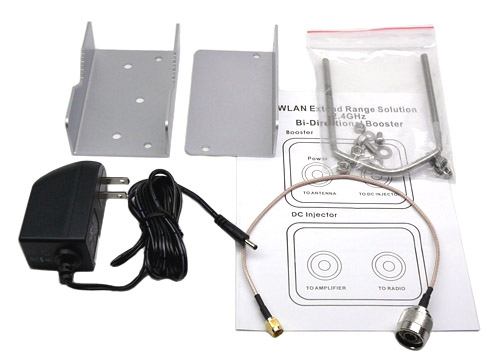

Package Content:
1W Booster/Amplifier
DC Injector (48V)
AC Adapter
SMA Male RP to N male RG316 cablex1
Mounting Kits
-
Manual
-
RG-213 Cable NOT included (sold separately)
-
Antenna NOT included (sold separately)
Warranty: 1 year
